Automatic Proportional Fertilizer Dosing Pump for Irrigation Equipment

The Automatic Proportional Fertilizer Dosing Pump is produced by অরল্যান্ট. It mixes fertilizer with irrigation water.

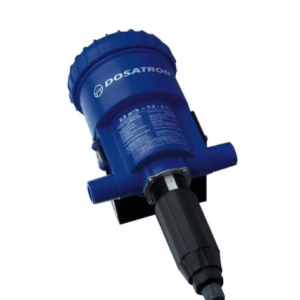

This pump is an Agriculture Proportional Fertilizer Dosing Pump. It supports irrigation systems in farms and gardens.

The pump works with water pressure and uses a hydraulic drive system. No external power source is required.

The dilution range is 0.2% to 2%. The pressure range is 0.3 to 6 bar. The flow range is 20 to 2,500 L/H.

The unit weighs 3 kg and installs on irrigation pipelines. It fits farm irrigation and home garden systems.

The pump can serve poultry facilities. It works as a Proportional Fertilizer Dosing Pump for Poultry Greenhouse.

It also supports breeding farms. It can be used as a Proportional Fertilizer Dosing Pump for Animal Farm.

The pump supports breeding systems. It can serve as a Proportional Fertilizer Dosing Pump for Livestock Breeding.

Aurlant provides customization services. Users can choose fixed or adjustable dosing ratios.

Thread types include NPT or BSP. Inlet size, outlet size, color, and brand mark can be customized.

The product follows ISO9001 quality control. Each unit passes pressure, flow, ratio, and leakage tests.

Batch samples run for 72 hours. A Professional French CE Certified Dosing Pump certificate is available on request.

পণ্যের পরামিতি

Features of Automatic Proportional Fertilizer Dosing Pump for Irrigation Equipment

Corrosion resistant body supports long service life. The pump uses engineering plastic or stainless steel. The materials resist acid and alkaline fertilizer solutions.

Multiple seal options support different chemical conditions. Seal materials include EPDM and Viton. Users can select seals based on fertilizer type.

Simple installation supports quick setup. The pump connects in series or parallel with irrigation pipelines. A mounting bracket supports stable installation.

Compact structure reduces mechanical parts. Fewer moving components lower wear during operation.

The pump operates with water pressure. It does not require electric power.

Cleaning is simple after operation. Rinse the pump with clean water to remove fertilizer residue.

The system can run for more than 100 days without maintenance under normal conditions.

The pump supports fertilizer dosing during irrigation. It provides a stable mixing ratio during water flow.

Highlights of Automatic Proportional Fertilizer Dosing Pump for Irrigation Equipment

Hydraulic driven, zero electricity cost. Runs on water pressure. Suitable for remote areas.

Constant proportion, not affected by flow or pressure changes. Volume hydraulic motor maintains consistent dosing.

Wide adjustable range. Ratio 0.025%-20% (1:4000 to 1:5). Can adjust during operation.

Supports stable fertilizer dosing for crops, poultry, and livestock systems.

Simple structure with few moving parts reduces maintenance needs.

Applications of Automatic Proportional Fertilizer Dosing Pump for Irrigation Equipment

Farm Irrigation: Fertilizer and nutrient delivery in irrigation systems.

Poultry: Water line dosing for medicine, supplements, and disinfection.

Greenhouse: Fertilizer application in irrigation pipelines for vegetables and flowers.

Livestock Breeding: Nutrient or medication dosing in water supply systems.

Home Garden: Small-scale irrigation with fertilizer dosing for plants.

FAQs of Automatic Proportional Fertilizer Dosing Pump for Irrigation Equipment

1. What is the Automatic Proportional Fertilizer Dosing Pump?
It is a pump that mixes fertilizer with irrigation water automatically.

2. Which industries use this pump?
It is used in farms, home gardens, poultry greenhouses, and livestock breeding.

3. What is the dilution range of the pump?
The pump supports 0.2%–2% fertilizer dilution.

4. What water pressure can it handle?
The pump works at 0.3–6 bar (4.3–85 PSI).

5. What is the flow range?
It can deliver 20–2,500 liters per hour.
